#include <address.h>

Inheritance diagram for UdpAddress:

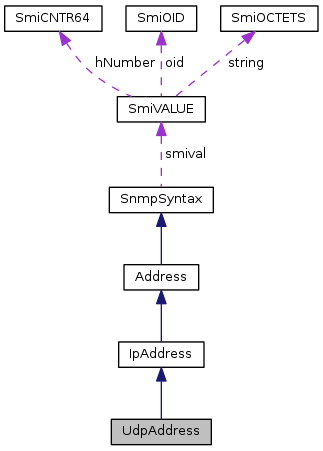

Collaboration diagram for UdpAddress:

Public Member Functions
	UdpAddress ()
	Construct an empty invalid UDP address. More...

	UdpAddress (const char *inaddr)
	Construct an UDP address from a string. More...

	UdpAddress (const UdpAddress &udpaddr)
	Construct an UDP address from another UDP address. More...

	UdpAddress (const GenAddress &genaddr)
	Construct an UDP address from a GenAddress. More...

	UdpAddress (const IpAddress &ipaddr)
	Construct an UDP address from a IP address. More...

	~UdpAddress ()
	Destructor (ensure that SnmpSyntax::~SnmpSyntax() is overridden). More...

virtual SnmpSyntax &	operator= (const SnmpSyntax &val)
	Map other SnmpSyntax objects to UdpAddress. More...

virtual Address &	operator= (const Address &val)
	Map other Address objects to UdpAddress. More...

virtual UdpAddress &	operator= (const UdpAddress &udpaddr)
	Overloaded assignment operator for UdpAddress. More...

virtual UdpAddress &	operator= (const IpAddress &ipaddr)
	Overloaded assignment operator for IpAddress. More...

SmiUINT32	get_syntax () const
	Return the syntax. More...

virtual int	get_asn1_length () const
	Return the space needed for serialization. More...

SnmpSyntax *	clone () const
	Clone this object. More...

virtual const char *	get_printable () const
	Get a printable ASCII value of the address. More...

virtual	operator const char * () const
	Overloaded operator for streaming output. More...

void	set_port (const unsigned short p)
	Set the port number. More...

unsigned short	get_port () const
	Get the port number. More...

virtual int	get_length () const
	Get the length of the binary address (accessible through operator[]). More...

virtual addr_type	get_type () const
	Return the type of the address. More...

virtual bool	map_to_ipv6 ()
	Map a IPv4 UDP address to a IPv6 UDP address. More...

void	clear ()
	Reset the object. More...

virtual bool	set_scope (const unsigned int scope)
	Set the IPv6 scope. More...

Public Member Functions inherited from IpAddress
	IpAddress ()
	Construct an empty invalid IP address. More...

	IpAddress (const char *inaddr)
	Construct an IP address from a string. More...

	IpAddress (const IpAddress &ipaddr)
	Construct an IP address from another IP address. More...

	IpAddress (const GenAddress &genaddr)
	Construct an IP address from a GenAddress. More...

	~IpAddress ()
	Destructor (ensure that SnmpSyntax::~SnmpSyntax() is overridden). More...

char *	friendly_name (int &status)
	Return the friendly name. More...

void	mask (const IpAddress &ipaddr)
	Logically AND the address with the param. More...

int	get_match_bits (const IpAddress match_ip) const
	Get the count of matching bits from the left. More...

virtual version_type	get_ip_version () const
	Return the IP version of the address. More...

virtual unsigned int	get_scope () const
	Get the IPv6 scope. More...

bool	has_ipv6_scope () const

Public Member Functions inherited from Address
	Address ()
	Default constructor, clears the buffer and sets valid flag to false. More...

virtual	~Address ()
	Allow destruction of derived classes. More...

virtual bool	valid () const
	Return if the object contains a valid address. More...

unsigned char &	operator[] (const int position)
	Access as an array (read and write). More...

unsigned char	operator[] (const int position) const
	Access as an array (read only). More...

virtual Address &	operator= (const char *str)

virtual unsigned int	hashFunction () const

Public Member Functions inherited from SnmpSyntax
virtual	~SnmpSyntax ()
	Virtual destructor to ensure deletion of derived classes... More...

Protected Member Functions
virtual bool	parse_address (const char *inaddr)

virtual void	format_output () const

Protected Member Functions inherited from IpAddress
int	parse_dotted_ipstring (const char *inaddr)

int	parse_coloned_ipstring (const char *inaddr)

int	addr_to_friendly ()

Protected Member Functions inherited from Address
void	trim_white_space (char *ptr)
	Trim of whitespaces at the start and the end of the string. More...

virtual bool	is_gen_address () const
	Is this a GenAddress object. More...

Protected Member Functions inherited from SnmpSyntax
	SnmpSyntax ()

Protected Attributes
SNMP_PP_MUTABLE char	output_buffer [OUTBUFF]

char	sep

Protected Attributes inherited from IpAddress
SNMP_PP_MUTABLE char	output_buffer [OUTBUFF]

char	iv_friendly_name [MAX_FRIENDLY_NAME]

int	iv_friendly_name_status

version_type	ip_version

bool	have_ipv6_scope

Protected Attributes inherited from Address
SNMP_PP_MUTABLE bool	addr_changed

bool	valid_flag

unsigned char	address_buffer [ADDRBUF]

Protected Attributes inherited from SnmpSyntax
SmiVALUE	smival

Additional Inherited Members
Public Types inherited from Address
enum	addr_type { type_ip, type_ipx, type_udp, type_ipxsock, type_mac, type_invalid }
	Type returned by Address::get_type(). More...

enum	version_type { version_ipv4, version_ipv6 }
	Type returned by IpAddress::get_ip_version() and UdpAddress::get_ip_version(). More...

Detailed Description

Definition at line 499 of file address.h.

Constructor & Destructor Documentation

UdpAddress::UdpAddress ( )

Construct an empty invalid UDP address.

UdpAddress::UdpAddress ( const char * inaddr )

Construct an UDP address from a string.

The following formats can be used additional to those recognized by IpAdress:

Port added to IPv4 address with '/' or ':' ("192.168.17.1:161", "192.168.17.1/161", "printsrv/161")
Port added to IPv6 address with '/' or using '[...]:' ("::1/162", "[::1]/162", "[::1]:162")

Parameters

inaddr - Hostname or IP address

UdpAddress::UdpAddress ( const UdpAddress & udpaddr )

Construct an UDP address from another UDP address.

Parameters

udpaddr - address to copy

UdpAddress::UdpAddress ( const GenAddress & genaddr )

Construct an UDP address from a GenAddress.

Parameters

genaddr - address to copy

UdpAddress::UdpAddress ( const IpAddress & ipaddr )

Construct an UDP address from a IP address.

The port will be set to 0.

Parameters

ipaddr - address to copy

UdpAddress::~UdpAddress ( )

inline

Destructor (ensure that SnmpSyntax::~SnmpSyntax() is overridden).

Definition at line 546 of file address.h.

Member Function Documentation

void UdpAddress::clear ( )

inlinevirtual

Reset the object.

Reimplemented from IpAddress.

Definition at line 643 of file address.h.

References Address::clear().

SnmpSyntax* UdpAddress::clone ( ) const

inlinevirtual

Clone this object.

Returns: Pointer to the newly created object (allocated through new).

Reimplemented from IpAddress.

Definition at line 587 of file address.h.

virtual void UdpAddress::format_output ( ) const

protectedvirtual

Reimplemented from IpAddress.

virtual int UdpAddress::get_asn1_length ( ) const

inlinevirtual

Return the space needed for serialization.

Reimplemented from IpAddress.

Definition at line 580 of file address.h.

virtual int UdpAddress::get_length ( ) const

inlinevirtual

Get the length of the binary address (accessible through operator[]).

Reimplemented from IpAddress.

Definition at line 622 of file address.h.

References UDPIP6LEN_NO_SCOPE, UDPIP6LEN_WITH_SCOPE, and UDPIPLEN.

unsigned short UdpAddress::get_port ( ) const

Get the port number.

Returns: The port number, or 0 is the object is not valid.

virtual const char* UdpAddress::get_printable ( ) const

inlinevirtual

Get a printable ASCII value of the address.

Returns: String containing the numerical address

Reimplemented from IpAddress.

Definition at line 594 of file address.h.

SmiUINT32 UdpAddress::get_syntax ( ) const

inlinevirtual

Return the syntax.

Returns: This method always returns sNMP_SYNTAX_OCTETS.

Reimplemented from IpAddress.

Definition at line 575 of file address.h.

References sNMP_SYNTAX_OCTETS.

virtual addr_type UdpAddress::get_type ( ) const

inlinevirtual

Return the type of the address.

See Also: Address::addr_type

Returns: Always Address:type_udp

Reimplemented from IpAddress.

Definition at line 631 of file address.h.

virtual bool UdpAddress::map_to_ipv6 ( )

virtual

Map a IPv4 UDP address to a IPv6 UDP address.

Returns: - TRUE if no error occured.

Reimplemented from IpAddress.

virtual UdpAddress::operator const char * ( ) const

inlinevirtual

Overloaded operator for streaming output.

Returns: String containing the numerical address

Reimplemented from IpAddress.

Definition at line 602 of file address.h.

virtual SnmpSyntax& UdpAddress::operator= ( const SnmpSyntax & val )

virtual

Map other SnmpSyntax objects to UdpAddress.

Reimplemented from IpAddress.

virtual Address& UdpAddress::operator= ( const Address & val )

virtual

Map other Address objects to UdpAddress.

Reimplemented from IpAddress.

virtual UdpAddress& UdpAddress::operator= ( const UdpAddress & udpaddr )

virtual

Overloaded assignment operator for UdpAddress.

virtual UdpAddress& UdpAddress::operator= ( const IpAddress & ipaddr )

virtual

Overloaded assignment operator for IpAddress.

Reimplemented from IpAddress.

virtual bool UdpAddress::parse_address ( const char * inaddr )

protectedvirtual

Reimplemented from IpAddress.

void UdpAddress::set_port ( const unsigned short p )

Set the port number.

Note: If the object is not valid(), the port may not be set.

virtual bool UdpAddress::set_scope ( const unsigned int scope )

virtual

Set the IPv6 scope.

Reimplemented from IpAddress.

Member Data Documentation

SNMP_PP_MUTABLE char UdpAddress::output_buffer[OUTBUFF]

protected

Definition at line 652 of file address.h.

char UdpAddress::sep

protected

Definition at line 653 of file address.h.

The documentation for this class was generated from the following file:

address.h
