v3MP::Cache Class Reference

Holds cache entries for currently processed requests. More...

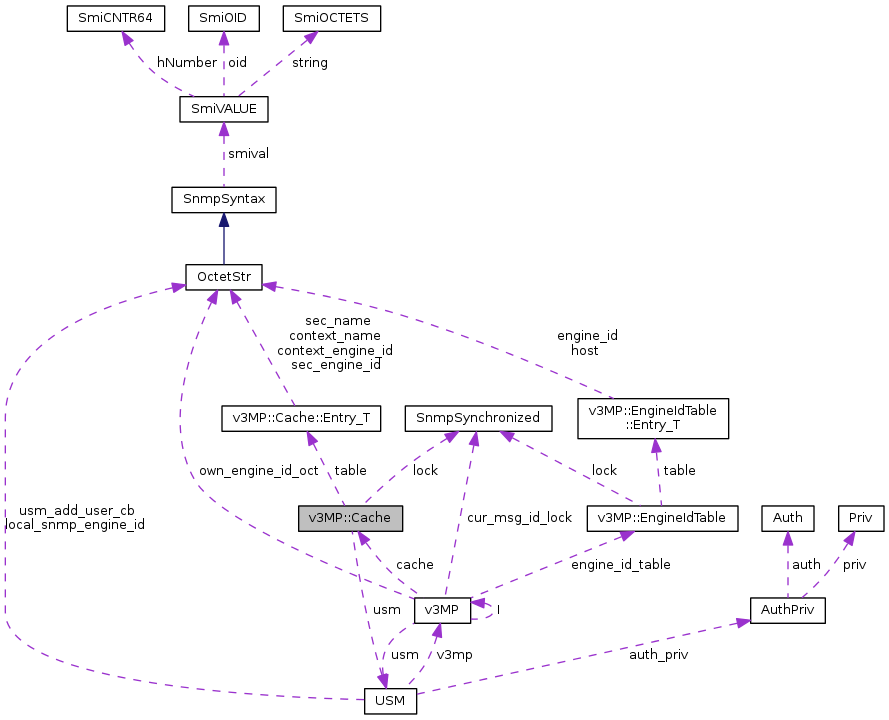

Collaboration diagram for v3MP::Cache:

Classes
struct	Entry_T

Public Member Functions
	Cache ()
	~Cache ()
int	add_entry (int msg_id, unsigned long req_id, const OctetStr &sec_engine_id, int sec_model, const OctetStr &sec_name, int sec_level, const OctetStr &context_engine_id, const OctetStr &context_name, struct SecurityStateReference *sec_state_ref, int error_code, bool local_request)
	Add an entry to the cache. More...
int	get_entry (int msg_id, bool local_request, int *error_code, struct SecurityStateReference **sec_state_ref)
	Search the cache for a message id, return the error code and the sec_state_ref and delete the entry from the cache. More...
void	delete_entry (unsigned long req_id, bool local_request)
	Delete the entry with the given request id from the cache. More...
void	delete_entry (unsigned long req_id, int msg_id, bool local_request)
	Delete the entry with the given request and message id from the cache. More...
int	get_entry (int searchedID, bool local_request, struct Cache::Entry_T *res)
	Search the cache for a message id, return the whole entry and delete the entry from the cache. More...
void	delete_content (struct Cache::Entry_T &ce)
void	set_usm (USM *usm_to_use)

Private Attributes
SNMP_PP_MUTABLE SnmpSynchronized	lock
struct Entry_T *	table
	whole table More...
int	max_entries
	the maximum number of entries More...
int	entries
	the current amount of entries More...
USM *	usm

Detailed Description

Holds cache entries for currently processed requests.

Definition at line 513 of file mp_v3.h.

Constructor & Destructor Documentation

v3MP::Cache::Cache

(

)

v3MP::Cache::~Cache

(

)

Member Function Documentation

int v3MP::Cache::add_entry	(	int	msg_id,
		unsigned long	req_id,
		const OctetStr &	sec_engine_id,
		int	sec_model,
		const OctetStr &	sec_name,
		int	sec_level,
		const OctetStr &	context_engine_id,
		const OctetStr &	context_name,
		struct SecurityStateReference *	sec_state_ref,
		int	error_code,
		bool	local_request
	)

Add an entry to the cache.

Parameters

msg_id	- The message id of the message
req_id	- The request id of the message
sec_engine_id	- The authoritative engineID
sec_model	- The security model used for this message
sec_name	- The name of the user
sec_level	- The security level used for this message
context_engine_id	- The context_engine_id
context_name	- The context_name
sec_state_ref	- The reference of the USM
error_code	- The code of the error that occured while parsing the received message

Returns

- SNMPv3_MP_OK, SNMPv3_MP_ERROR or SNMPv3_DOUBLED_MESSAGE (an entry with the given values is already in the cache)

void v3MP::Cache::delete_content

(

struct Cache::Entry_T &

ce

)

void v3MP::Cache::delete_entry	(	unsigned long	req_id,
		bool	local_request
	)

Delete the entry with the given request id from the cache.

This function is used in eventlist.cpp when a request has timed out.

Parameters

req_id

- The request id.

void v3MP::Cache::delete_entry	(	unsigned long	req_id,
		int	msg_id,
		bool	local_request
	)

Delete the entry with the given request and message id from the cache.

Parameters

req_id	- The request id.
msg_id	- The message id.

int v3MP::Cache::get_entry	(	int	msg_id,
		bool	local_request,
		int *	error_code,
		struct SecurityStateReference **	sec_state_ref
	)

Search the cache for a message id, return the error code and the sec_state_ref and delete the entry from the cache.

Parameters

msg_id	- Search for this message id
error_code	- OUT: The error code of the received message
sec_state_ref	- IN: Pointer to a pointer of the structure OUT: The structure as received by the USM when the message was parsed.

Returns

- SNMPv3_MP_ERROR, SNMPv3_MP_OK

int v3MP::Cache::get_entry	(	int	searchedID,
		bool	local_request,
		struct Cache::Entry_T *	res
	)

Search the cache for a message id, return the whole entry and delete the entry from the cache.

Parameters

searchedID	- Search for this message id
res	- IN: Pointer to an empy structure OUT: The filled structure

Returns

- SNMPv3_MP_ERROR, SNMPv3_MP_OK

void v3MP::Cache::set_usm ( USM *  usm_to_use )

inline

Definition at line 609 of file mp_v3.h.

Member Data Documentation

int v3MP::Cache::entries

private

the current amount of entries

Definition at line 617 of file mp_v3.h.

SNMP_PP_MUTABLE SnmpSynchronized v3MP::Cache::lock

private

Definition at line 609 of file mp_v3.h.

int v3MP::Cache::max_entries

private

the maximum number of entries

Definition at line 616 of file mp_v3.h.

struct Entry_T* v3MP::Cache::table

private

whole table

Definition at line 615 of file mp_v3.h.

USM* v3MP::Cache::usm

private

Definition at line 618 of file mp_v3.h.

---

The documentation for this class was generated from the following file:

• mp_v3.h
