Package org.snmp4j.transport
The org.snmp4j.transport
classes are capable of sending and
receiving byte messages to and from a network using transport mapping specific
transport protocol. All SNMP4J transport mappings have to implement the
org.snmp4j.TransportMapping
interface. SNMP4J supports two
transport mappings for the transport protocols UDP and TCP:
-
The UDP transport mapping is the default SNMP transport mapping. It is
implemented by the
DefaultUdpTransportMapping
class. -
The TCP transport mapping is implemented by the
DefaultTcpTransportMapping
using thejava.nio
package.
Additional transport mappings can be easily added. It is sufficient to
implement the org.snmp4j.TransportMapping
interface and add
an instance of that class to the Snmp
(or MessageDispatcher
)
object. To be able to lookup a transport mapping by an Address
class via the TransportMappings
(as Snmp
does
for notification listeners), a transport mapping has to be registered
in a transport mapping registration file. The default file is
transports.properties
in the org.snmp4j.transport
package. To use a different file, set the system property
org.snmp4j.transportMappings
.
Connection-oriented transport mappings like TCP should implement
the ConnectionOrientedTransportMapping
interface to support
MessageLengthDecoder
and TransportStateListener
.

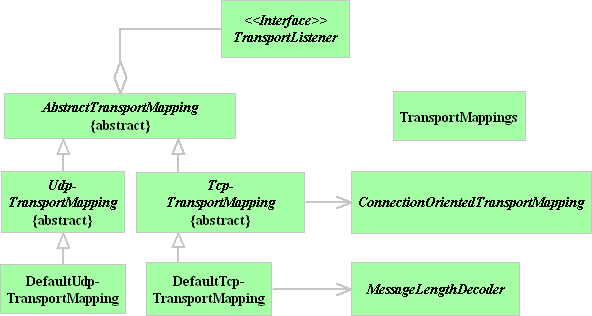

The following UML class diagram shows the classes of the
org.snmp4j.transport
package and their relationships
(relationships to other packages are not shown):
-
ClassDescriptionAbstractTransportMapping<A extends Address>The
AbstractTransportMapping
provides an abstract implementation for the message dispatcher list and the maximum inbound message size.ConnectionOrientedTransportMapping<A extends Address>Transport mappings for connection oriented transport protocols have to implement this interface.TheDefaultSshTransportMapping
implements a TCP transport mapping with TLS according to RFC 5592 (named SSHTM therein).TheDefaultTcpTransportMapping
implements a TCP transport mapping with the Java 1.4 new IO API.TheDefaultUdpTransportMapping
implements a UDP transport mapping based on Java standard IO and using an internal thread for listening on the inbound socket.DummyTransport<A extends IpAddress>TheDummyTransport
is a test TransportMapping for Command Generators which actually does not sent messages over the network.TheMessageLength
object contains information about the length of a message and the length of its header.TheMessageLengthDecoder
needs to be implemented for connection oriented transport mappings, because those transport mappings have no message boundaries.TheTcpTransportMapping
is the abstract base class for TCP transport mappings.TheTLSTM
implements the Transport Layer Security Transport Mapping (TLS-TM) as defined by RFC 5953 with the new IO API andSSLEngine
.TheTransportListener
interface is implemented by objects that process incoming messages fromTransportMapping
s, for exampleMessageDispatcher
.TheTransportMappings
factory can be used to create a transport mapping for an address class.TheTransportStateEvent
describes a state change for a transport connection.TheTransportStateListener
interface can be implemented to monitor the connection state for connection oriented transport mappings.TheUdpTransportMapping
is the abstract base class for UDP transport mappings.TheUnsupportedAddressClassException
indicates a message exception caused by unsupported address class.
